工业级全千兆管理型导轨式工业以太网交换机
产品描述
工业级全千兆管理型导轨式工业以太网交换机

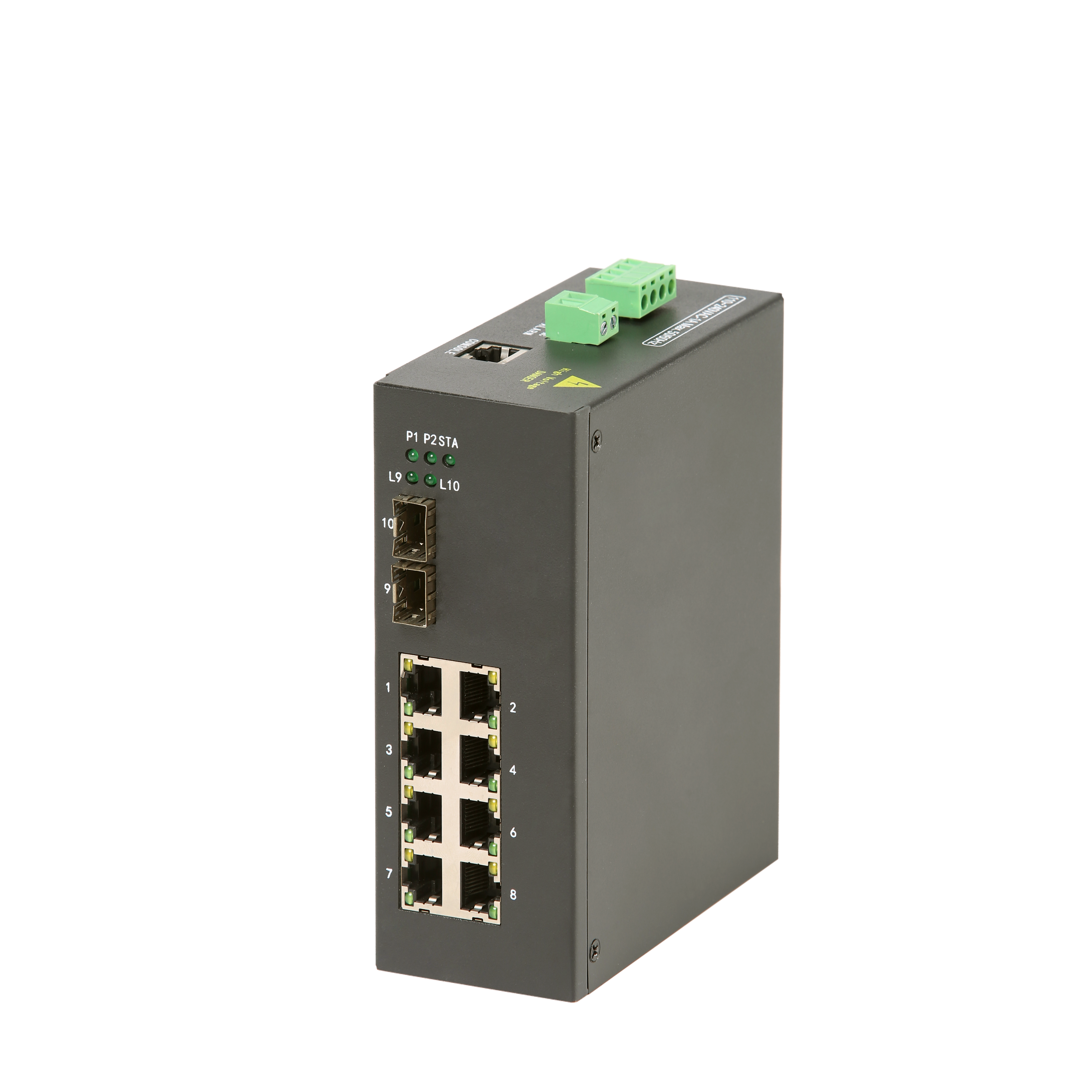

ZJIES3000D-8GT2GB 系列工业级全千兆管理型导轨式工业以太网交换机，支持 8* 10/100/1000Base-T 与 2*1000Base-XSFP。管理功能齐全，包括 QoS、VLAN、IGMP Snooping /GMRP、Port Trunking、SNMP V1/V2/V3 等。RSTP/STP/MSTP/ERPS 等多种冗余保护协议，提高了网络的可靠性和互通性。宽温设计，强抗电磁干扰能力，满足严苛的工业现场环境应用的需求，适合构建基于环网冗余协议的全千兆交换冗余网络。
本系列产品已在中国电网大规模使用，产品质量产品能力已在实际网络中检验。
本系列型号详见技术规格表格。
关键特性
- ● 支持 8*10/100/1000Base-T，2*1000Base-X SFP 插槽光口
- ● 可选 DC 24V/48V,AC 220V 电源输入
- ● 支持 RSTP/STP/MSTP/ERPS/ZJRing 等多种冗余保护协议
- ● 支持 QoS、VLAN、IGMP Snooping/GMRP 等管理功能
- ● 支持导轨式/壁挂式安装
- ● 支持宽温工作范围-40~+75℃
- ● 支持 IP40 防护等级
技术规格
| 型号 | 产品描述 |
| ZJIES3000D-8GT2GB-AC | 工业级管理型导轨式工业以太网交换机，8*10/100/1000Base-T，2*1000Base-X SFP 插槽光口，AC220V（AC 100～240V）供电。多模双纤 2 公里、单模双纤 10 公里可选，单纤、双纤可选。 |
| ZJIES3000D-8GT2GB-DCL | 工业级管理型导轨式工业以太网交换机，8*10/100/1000Base-T，2*1000Base-X SFP 插槽光口，DC24V（12~36V）供电，冗余输入电源。多模双纤 2 公里、单模双纤 10 公里可选，单纤、双纤可选。 |
| ZJIES3000D-8GT2GB-DCH | 工业级管理型导轨式工业以太网交换机，8*10/100/1000Base-T，2*1000Base-X SFP 插槽光口，DC48V（36~56V）供电，冗余输入电源。多模双纤 2 公里、单模双纤 10 公里可选，单纤、双纤可选。 |
| model | Product Description |
| ZJIES3000D-8GT2GB-AC | Industrial-grade managed DIN rail-mounted industrial Ethernet switch, 8*10/100/1000Base-T, 2*1000Base-X SFP slot optical ports, AC220V (AC 100～240V) power supply. Multimode dual-fiber 2km and single-mode dual-fiber 10km options are available, as are single-fiber and dual-fiber options. |
| ZJIES3000D-8GT2GB-DCL | Industrial-grade managed DIN rail-mounted industrial Ethernet switch, 8*10/100/1000Base-T, 2*1000Base-X SFP slot optical ports, DC24V (12~36V) power supply, redundant input power. Multimode dual-fiber 2km and single-mode dual-fiber 10km options are available, as are single-fiber and dual-fiber options. |
| ZJIES3000D-8GT2GB-DCH | Industrial-grade managed DIN rail-mounted industrial Ethernet switch, 8*10/100/1000Base-T, 2*1000Base-X SFP slot optical ports, DC48V (36~56V) power supply, redundant input power. Multimode dual-fiber 2km and single-mode dual-fiber 10km options are available, as are single-fiber and dual-fiber options. |
| 交换机规格 | |
| IEEE 标准 | |
| IEEE802.3 | 10BaseT Ethernet |
| IEEE802.3u | 100BaseT(X) and 100BaseFX Fast Ethernet |
| IEEE802.3ab | 1000BaseT(X) Ethernet |
| IEEE802.3z | 1000BaseX Ethernet |
| IEEE802.3x | FlowControl（流量控制） |
| IEEE802.3d | Spanning TreeProtocol（生成树） |
| IEEE802.1w | Rapid Spanning TreeProtocol（快速生成树） |
| IEEE802.1s | Multiple SpanningTreeProtocol（多生成树） |
| ITU-T G.8032 | Ethernet Ring Protection Switching（以太网环路保护切换） |
| IEEE802.1p | Class of Service（服务等级） |
| IEEE802.1Q | VLAN Tag（虚拟局域网标签） |
| IEEE802.3ad | LACP(链路聚合控制协议) |
| IEEE802.1x | User Authentication(用户鉴权) |
| IEEE802.1ab | LLDP（逻辑链路发现协议） |
| 交换特性 | |
| MAC 地址表 | 8K |
| 数据包缓存 | 4Mbit |
| 处理方式 | 存储转发 |
| 接口 | |
| RJ45 端口数 | 8*10/100/1000Base-T |
| SFP 插槽光口 | 2*1000Base-X SFP 插槽光口 |
| LED 指示灯 | 电源、电口、光口、状态 |
| 控制串口 | RS-232，RJ45 连接器，9600bps，8，N，1 |
| 电源 | |
| 24V 输入 | 4 针端子，双输入电源;24VDC 电源支持范围为 12-36VDC |
| 48V 输入 | 4 针端子，双输入电源;48VDC 电源支持范围为 36-56VDC |
| 220V 输入 | 4 针端子，单电源；220V 电源支持范围为 100~240VAC |
| 电源功耗 | 最大 15 瓦 |
| 电源保护 | 反接保护、过载保护 |
| 告警 | 2 针端子 |
| 环境属性 | |
| 标准型号 | -10~60 °C |
| 宽温型号 | -40~75 °C |
| 储存温度 | -40 °C~85 °C |
| 相对湿度 | 5~95%(无凝霜) |
| 认证 | |
| EMC | CE,FCC |
| EMI | FCCPart15.CISPR(EN55022)classA |
| EMS | EN61000-4-2（ESD）Level3, EN61000-4-3（RS）Level3, EN61000-4-4（EFT）Level3, EN61000-4-5（Surge）Level3, EN61000-4-6（CS）Level3, EN61000-4-8 |
| Shock | IEC60068-2-27 |
| Freefall | IEC60068-2-32 |
| Vibration | IEC60068-2-6 |
| GreenProduct | RoHS,WEEE |
| 软件特性 | |
| MIB | RFC1215Trap，RFC1213MIBII，RFC1157SNMPMIB， RFC1493BridgeMIB，RFC 2674VLANMIB，RFC1643，RFC1757，RSTPMIB，PrivateMIB，LLDPMIB |
| 设备管理 | 支持 SNMPv1，v2，v3 支持 Web 管理、Telnet 和串口 CLI 配置支持 DHCP-client 支持用户登录密码保护 |
| 安全特性 | 支持 ACL 具备 L2～L4 包过滤能力 支持基于端口的 MAC 过滤 支持 MAC 地址绑定 支持基于端口的 802.1X 认证 支持 RADIUS 认证 支持系统自防御，防止 DDOS 等攻击 |
| VLAN | 支持端口 VLAN、IEEE802.1QTag 最多可用的 VLAN 数：4094，VID 范围 1~4094 支持管理 VLAN |
| 端口汇聚 | 支持静态 LACP；支持 2 组汇聚组，每组最多 4 个端口 |
| 网络冗余 | 支持 STP(IEEE802.1d)，RSTP(IEEE802.1w)和 MSTP(IEEE802.1s) ERPS（G.8032），ZJRing 私有环网（自愈时间<50ms） |
| QoS | 支持绝对优先级、相对优先级两种调度方式 4 个优先级队列， 支持根据 802.1p/DSCP 队列调度，每端口 8 个队列 |
| 端口镜像 | 支持基于端口的单向和双向流量镜像 |
| IGMP 组播 | 支持 IGMPSnoopingV1/V2，最多支持 256 个组播组 |
| 端口带宽控制 | 支持对出入端口的报文流量进行限速，粒度最小为 64Kbps |
| 广播风暴抑制 | 支持对广播报文、组播报文和未知单播报文的抑制 |
| 设备维护 | 支持 Syslog（系统日志） 支持 RMON（RemoteNetworkMonitoring） 支持 Ping 检测 支持链路层发现协议 LLDP（LinkLayerDiscoveryProtocol） |
| SNTP | 支持 SNTP 协议 |
| 固件升级 | 支持 WEB 页面和串口 TFTP 升级 |
| 配置文件 | 支持配置文件的导入和导出 |
| 物理特性 | |
| 外壳 | IP40 金属外壳 |
| 安装方式 | 默认导轨安装，可选壁挂安装 |
| 尺寸 | 47(W)x175(H)x150(D)mm |
| 质保期 | |
| MTBF | 320000h |
| 保修期 | 5 年 |
| Switch specifications | |
| IEEE standards | |
| IEEE802.3 | 10BaseT Ethernet |
| IEEE802.3u | 100BaseT(X) and 100BaseFX Fast Ethernet |
| IEEE802.3ab | 1000BaseT(X) Ethernet |
| IEEE802.3z | 1000BaseX Ethernet |
| IEEE802.3x | FlowControl |
| IEEE802.3d | Spanning TreeProtocol |
| IEEE802.1w | Rapid Spanning TreeProtocol |
| IEEE802.1s | Multiple SpanningTreeProtocol |
| ITU-T G.8032 | Ethernet Ring Protection Switching |
| IEEE802.1p | Class of Service |
| IEEE802.1Q | VLAN Tag |
| IEEE802.3ad | LACP |
| IEEE802.1x | User Authentication |
| IEEE802.1ab | LLDP |
| Exchange characteristics | |
| MAC address table | 8K |
| Packet cache | 4Mbit |
| Processing method | store and forward |
| interface | |
| Number of RJ45 ports | 8*10/100/1000Base-T |
| SFP slot optical port | 2*1000Base-X SFP slot optical ports |
| LED indicator lights | Power supply, electrical port, optical port, status |
| Control serial port | RS-232, RJ45 connector, 9600bps, 8, N, 1 |
| power supply | |
| 24V input | 4-pin connector, dual power input; 24VDC power supply supported range of 12-36VDC. |
| 48V input | 4-pin connector, dual power input; 48VDC power supply supported range is 36-56VDC. |
| 220V input | 4-pin connector, single power supply; 220V power supply support range is 100~240VAC. |
| Power consumption | Maximum 15 watts |
| Power protection | Reverse connection protection, overload protection |
| Alarm | 2-pin terminal |
| Environmental properties | |
| Standard model | -10~60 °C |
| Wide temperature model | -40~75 °C |
| storage temperature | -40 °C~85 °C |
| relative humidity | 5~95% (non-frost) |
| Certification | |
| EMC | CE,FCC |
| EMI | FCCPart15.CISPR(EN55022)classA |
| EMS | EN61000-4-2（ESD）Level3, EN61000-4-3（RS）Level3, EN61000-4-4（EFT）Level3, EN61000-4-5（Surge）Level3, EN61000-4-6（CS）Level3, EN61000-4-8 |
| Shock | IEC60068-2-27 |
| Freefall | IEC60068-2-32 |
| Vibration | IEC60068-2-6 |
| GreenProduct | RoHS,WEEE |
| Software features | |
| MIB | RFC1215Trap，RFC1213MIBII，RFC1157SNMPMIB， RFC1493BridgeMIB，RFC 2674VLANMIB，RFC1643，RFC1757，RSTPMIB，PrivateMIB，LLDPMIB |
| Device management | Supports SNMPv1, v2, v3 Supports Web management, Telnet, and serial port CLI configuration; supports DHCP-client; supports user login password protection. |
| security features | Supports ACLs with L2-L4 packet filtering capabilities Supports port-based MAC filtering Supports MAC address binding Supports port-based 802.1X authentication Supports RADIUS authentication Supports system self-defense to prevent DDoS and other attacks. |
| VLAN | Supports ACLs with L2-L4 packet filtering capabilities Supports port-based MAC filtering Supports MAC address binding Supports port-based 802.1X authentication Supports RADIUS authentication Supports system self-defense to prevent DDoS and other attacks. |
| Port aggregation | Supports static LACP; supports 2 aggregation groups, each with a maximum of 4 ports. |
| Network redundancy | Supports STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s). Also supports ERPS (G.8032) and ZJRing private ring networks (self-healing time <50ms). |
| QoS | Supports both absolute priority and relative priority scheduling modes. 4 priority queues. Supports scheduling based on 802.1p/DSCP queues, with 8 queues per port. |
| port mirroring | Supports port-based one-way and two-way traffic mirroring |
| IGMP multicast | Supports IGMPSnoopingV1/V2, with a maximum of 256 multicast groups. |
| Port bandwidth control | Supports rate limiting of packet traffic on inbound and outbound ports, with a minimum granularity of 64Kbps. |
| broadcast storm suppression | Supports suppression of broadcast messages, multicast messages, and unknown unicast messages. |
| Equipment maintenance | Supports Syslog (system log) Supports RMON (Remote Network Monitoring) Supports Ping detection Supports Link Layer Discovery Protocol (LLDP) |
| SNTP | Supports SNTP protocol |
| Firmware upgrade | Supports upgrades via web page and serial TFTP. |
| Configuration file | Supports importing and exporting configuration files. |
| physical properties | |
| shell | IP40 metal casing |
| Installation method | Default mounting rail installation, wall mounting optional |
| size | 47(W)x175(H)x150(D)mm |
| Warranty period | |
| MTBF | 320000h |
| Warranty period | 5 years |
