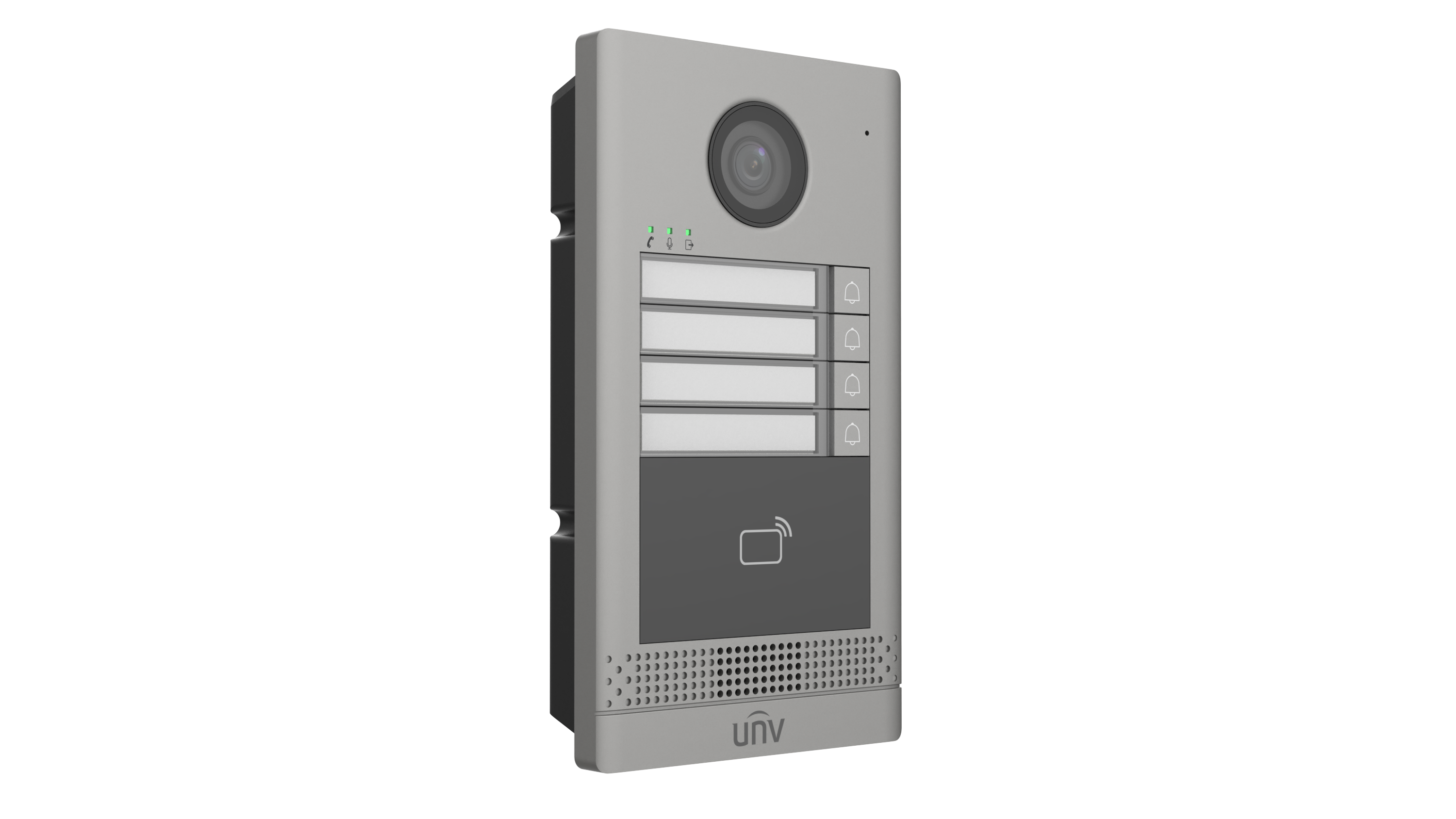

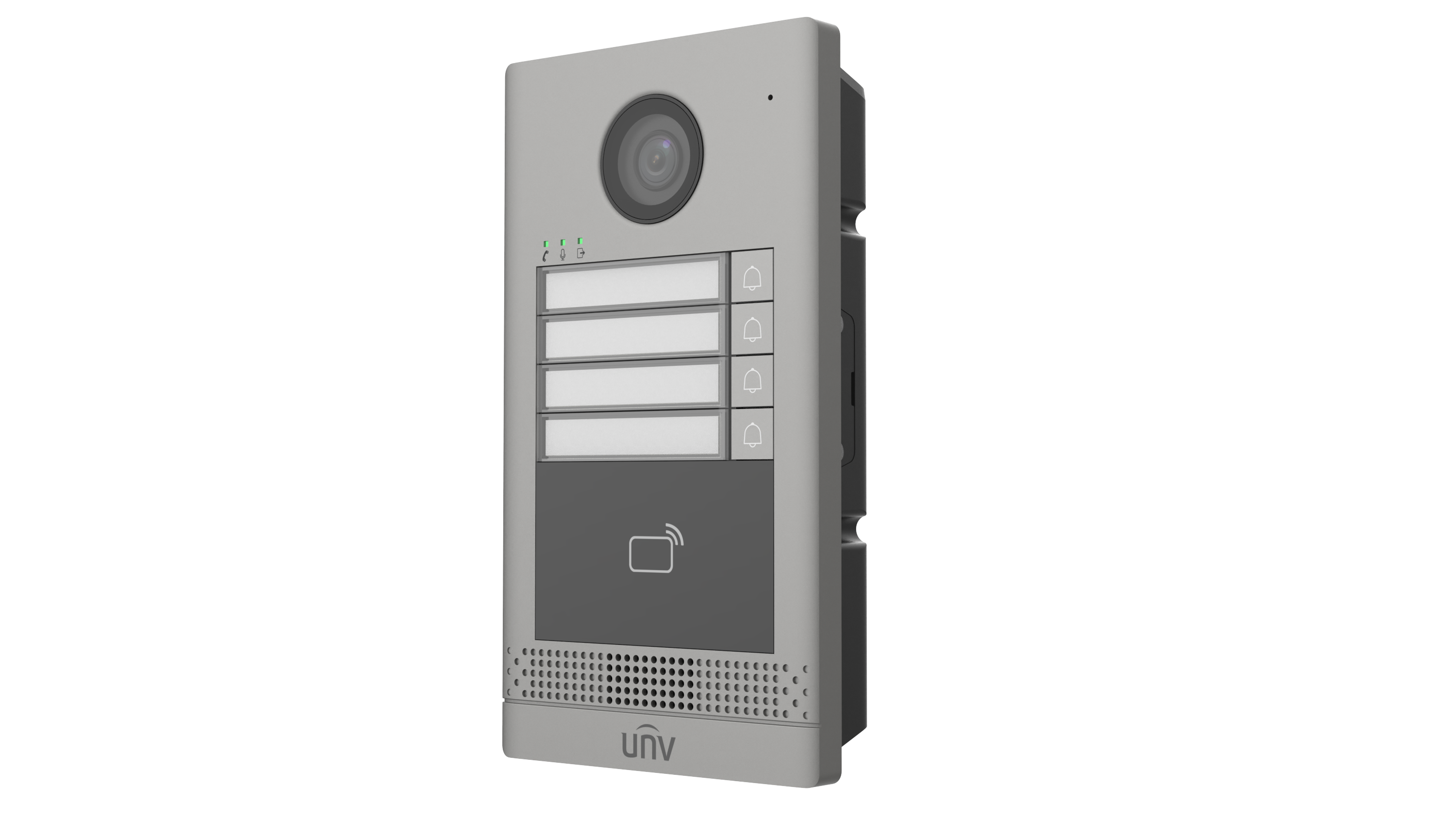

别墅门禁终端（IC卡，4个键盘）
产品描述
OEU-202S-HMK4别墅门禁终端是数字楼宇对讲系统的终端设备之一，具备可视对讲、安防报警、视频监控等功能，为住户提供安全舒适的居住环境，可广泛应用于别墅楼宇系统。
关键特性
- ● 可选配嵌入式安装盒
- ● 支持电源输出，可通过网页界面启用或禁用
- ● 内置加热模块，支持低温运行
- ● 金属外壳
- ● 支持批量配置
- ● 支持与连接的室内机和APP进行呼叫和对讲
- ● 支持视频监控、安全报警和防拆报警
- ● 内置IC卡读卡器
技术规格
| Model | OEU-202S-HMK4 |
| Basic Business | |
| WDR | Support DWDR |
| Protocol | Private protocol |
| Button | 4 x Call button |
| Network protocol | TCP/IP, IPv4, HTTP, RTP, RTSP, NTP |
| Specification Index | |
| Card Capacity | 10000 |
| Maximum Connected Indoor Station | 20 |
| Hardware Specification | |
| FOV | Horizontal: 106.9° Vertical: 56.9° Diagonal: 127.9° |
| Power Consumption | PoE: 6.48W DC12V: 5.35W |
| Volume Adjustment | Support |
| Audio Quality | Noise suppression, echo cancellation, AGC |
| Audio Input | 1 x Built-in omnidirectional microphone |
| Audio Output | 1 x Built-in speaker |
| Audio Compression Bitrate | 128Kbps |
| Protection Level | IP65 (Apply waterproof glue to the gap between the device and the wall. See the corresponding quick guide for details) IK08 |
| Power Supply | DC12V ±25%, IEEE802.3af PoE power supply |
| Operating System | Linux |
| Illuminator | IR light (adaptive) |
| Weight | 680g |
| Mount Method | Wall mount |
| Network | 100Mbps network port, supports IEEE802.3af PoE power supply |
| Interface | Power*1, network port*1, RS485*1, Wiegand*1, IO input*4, door lock*2 (support electric lock/door magnet), tamper button*1 |
| Dimensions (L x W x H) | 96mm*176mm*33mm |
| Operating Environment | -40°C to 60°C, 10% to 90%, noncondensing, outdoor |
| Operating Frequency | 13.56MHz |
| Power Output | 12V/0.25A |
| Compliance | |
| NDAA Compliant | Support |
