别墅门禁终端（IC卡，单按钮）
产品描述

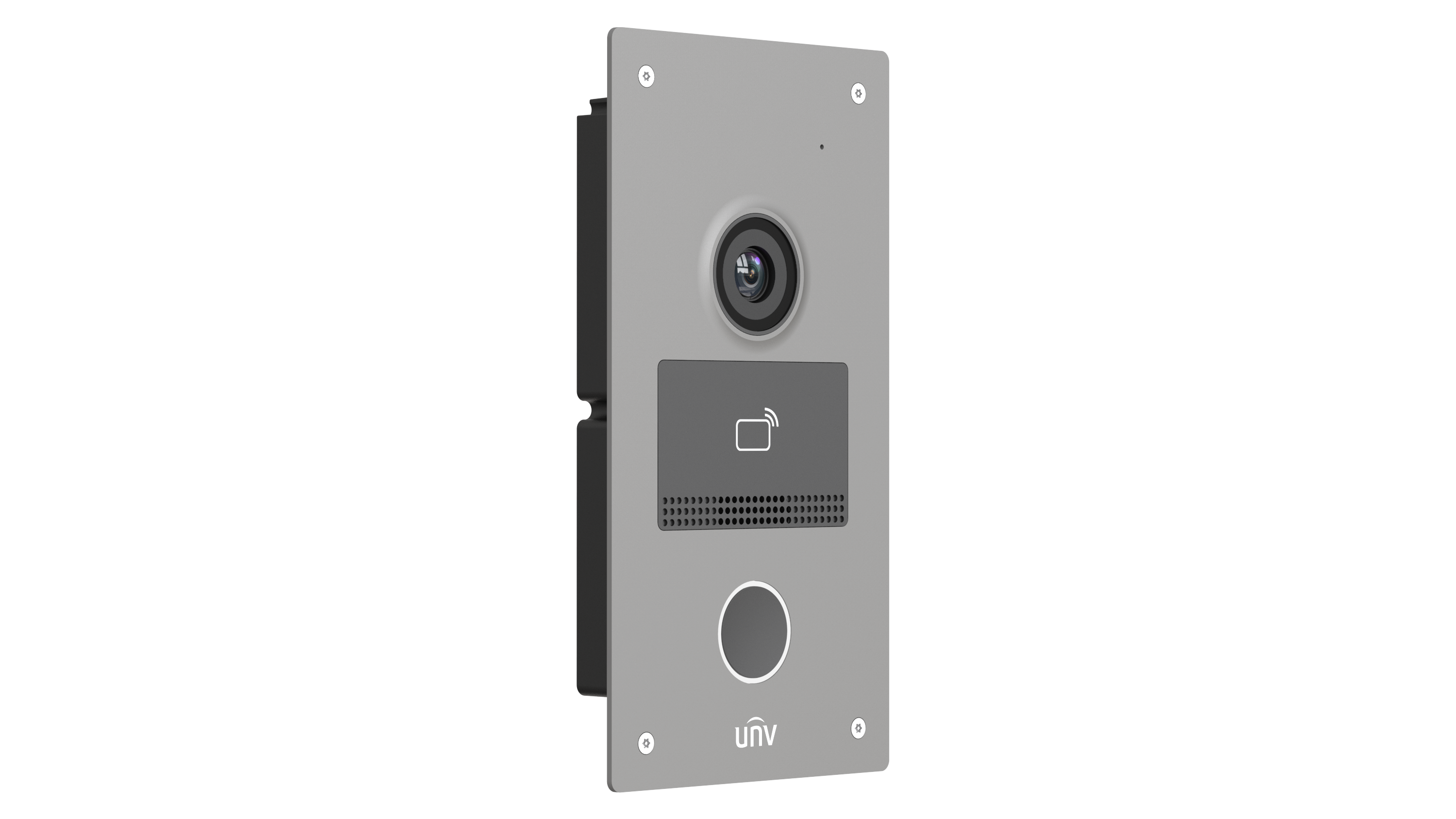

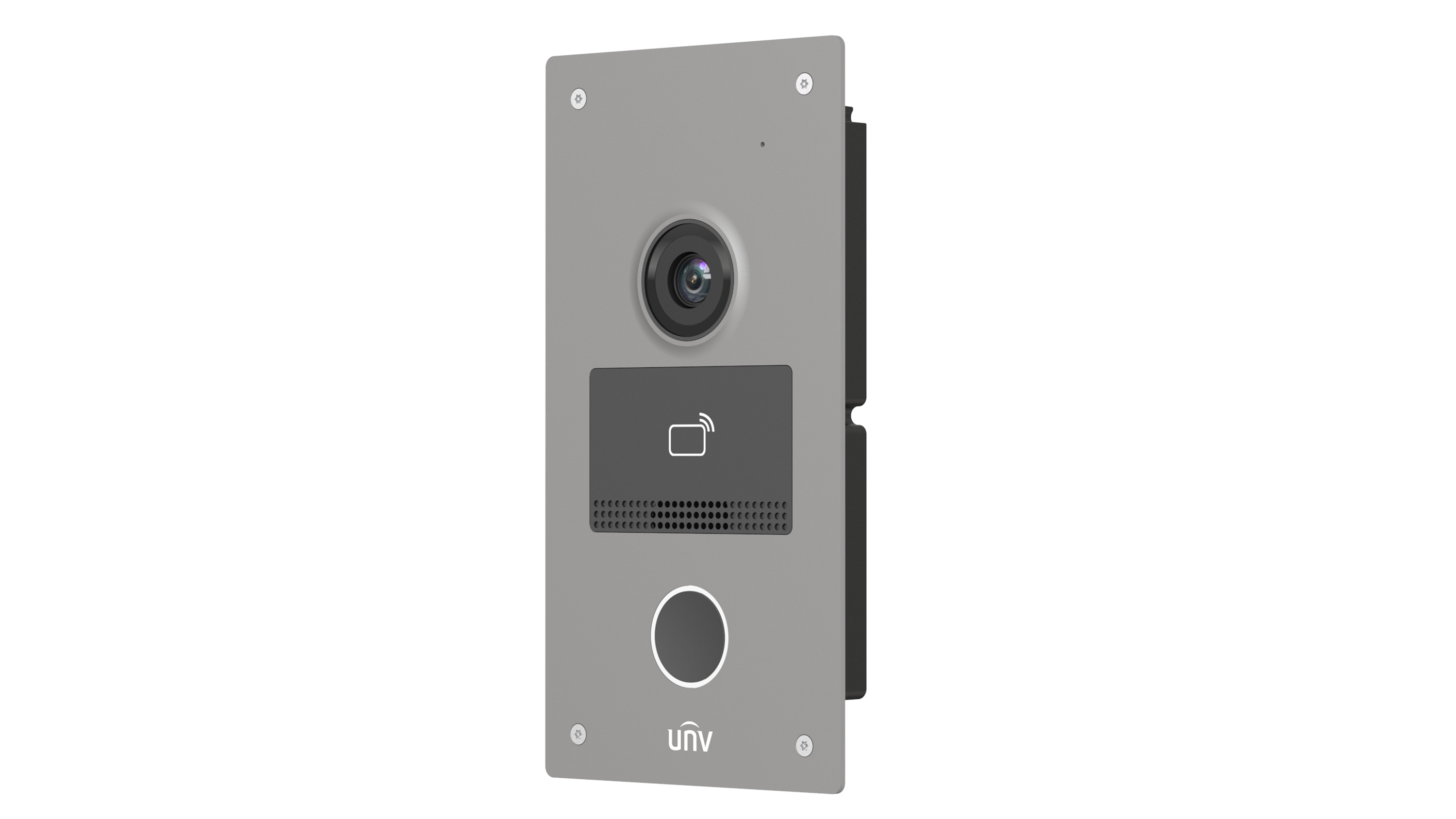

OEU-201S-HMK-Z别墅门站是数字楼宇对讲系统中的终端设备，具备可视对讲、安全防护报警、视频监控等功能，为住户提供安全舒适的居住环境，可广泛应用于住宅别墅。
关键特性
- ● 金属外壳
- ● 支持批量配置
- ● 支持与连接的室内机和APP进行通话和对讲
- ● 支持视频监控、安全防护报警和防拆报警
- ● 内置IC卡读卡器
技术规格
| Model | OEU-201S-HMK-Z |
| Hardware Specification | |
| Operation System | Linux |
| Supplement Light | IR light (adaptive) |
| FOV | Horizontal: 124.3° Vertical: 67.5° Diagonal: 147.2° |
| Power Consumption | < 10W |
| Volume Adjustment | Support |
| Audio Quality | Noise reduction, echo cancellation, auto gain control |
| Audio Input | Built-in mic |
| Audio Output | Built-in speaker |
| Audio Compression Standard | PCM, G711, MP3 |
| Audio Compression Bitrate | 128Kps |
| Protection Level | IP65 (Apply waterproof glue to the gap between the device and the wall. See the quick guide for details), IK08 |
| Power Supply | DC12V ±25%, PoE power supply |
| Weight | 267g |
| Mount Method | Wall mount, supports surface mount, junction box mount, recess mount |
| Network | 100Mbps network interface, supports IEEE802.3af PoE power supply |
| Interface | Power supply*1, network interface*1, RS485*1, door lock interface*2, IO input*4 |
| Dimensions (L x W x H) | 102mm x 31.6mm x 194mm |
| Operating Environment | - 40°C to 60°C, 10% to 90% noncondensing, outdoor |
| Operating Frequency | 13.56MHz |
| Basic Business | |
| WDR | Supports DWDR |
| Protocol | Uniview private protocol |
| Button | Door call button*1, tamper button*1 |
| Network protocol | TCP/IP, IPv4, HTTP, RTP, RTSP, NTP |
| Specification Index | |
| Card Capacity | 10000 |
| Linked Indoor Station Capacity | 20 |
| Compliance | |
| NDAA Compliant | Support |
