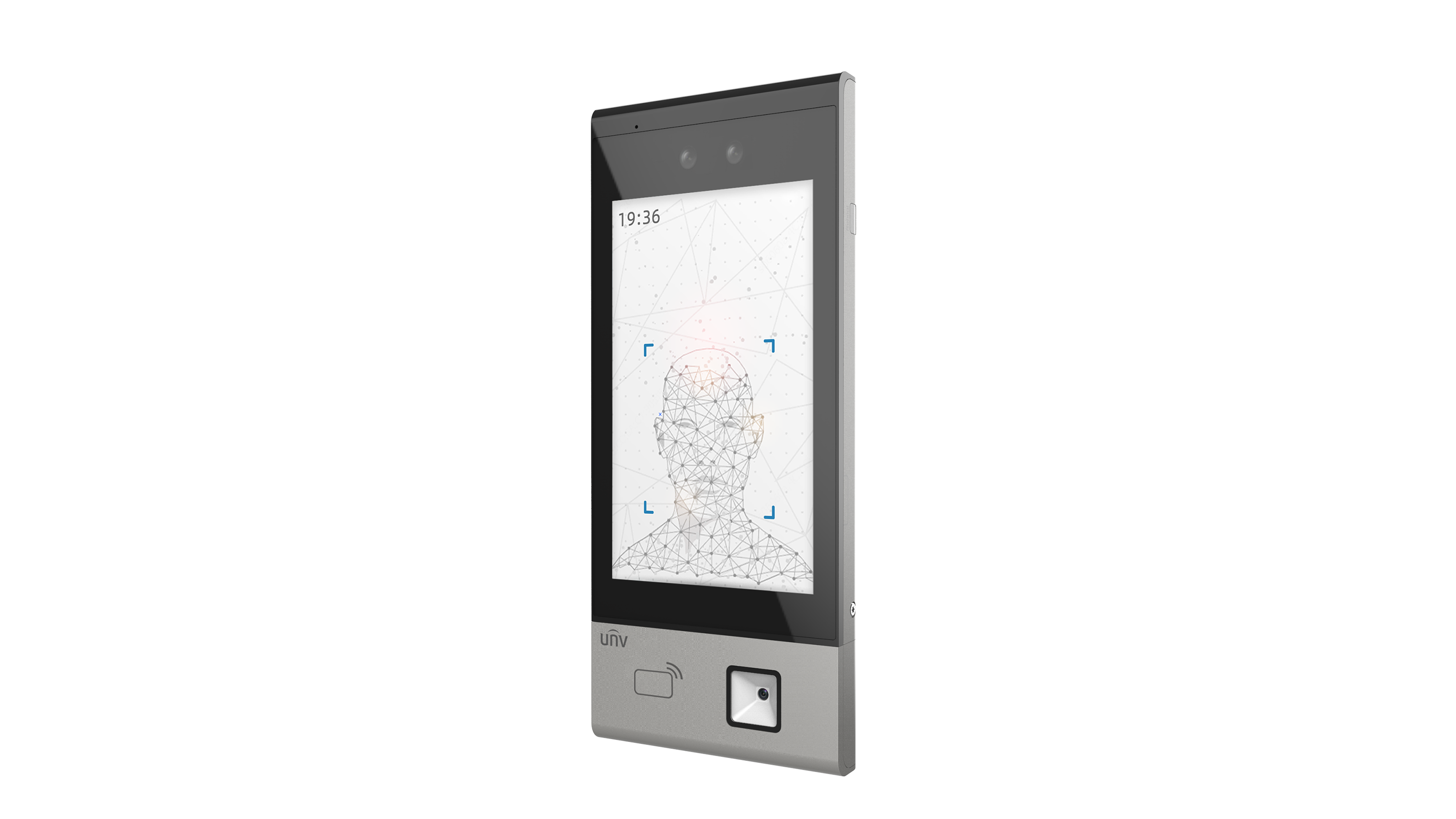

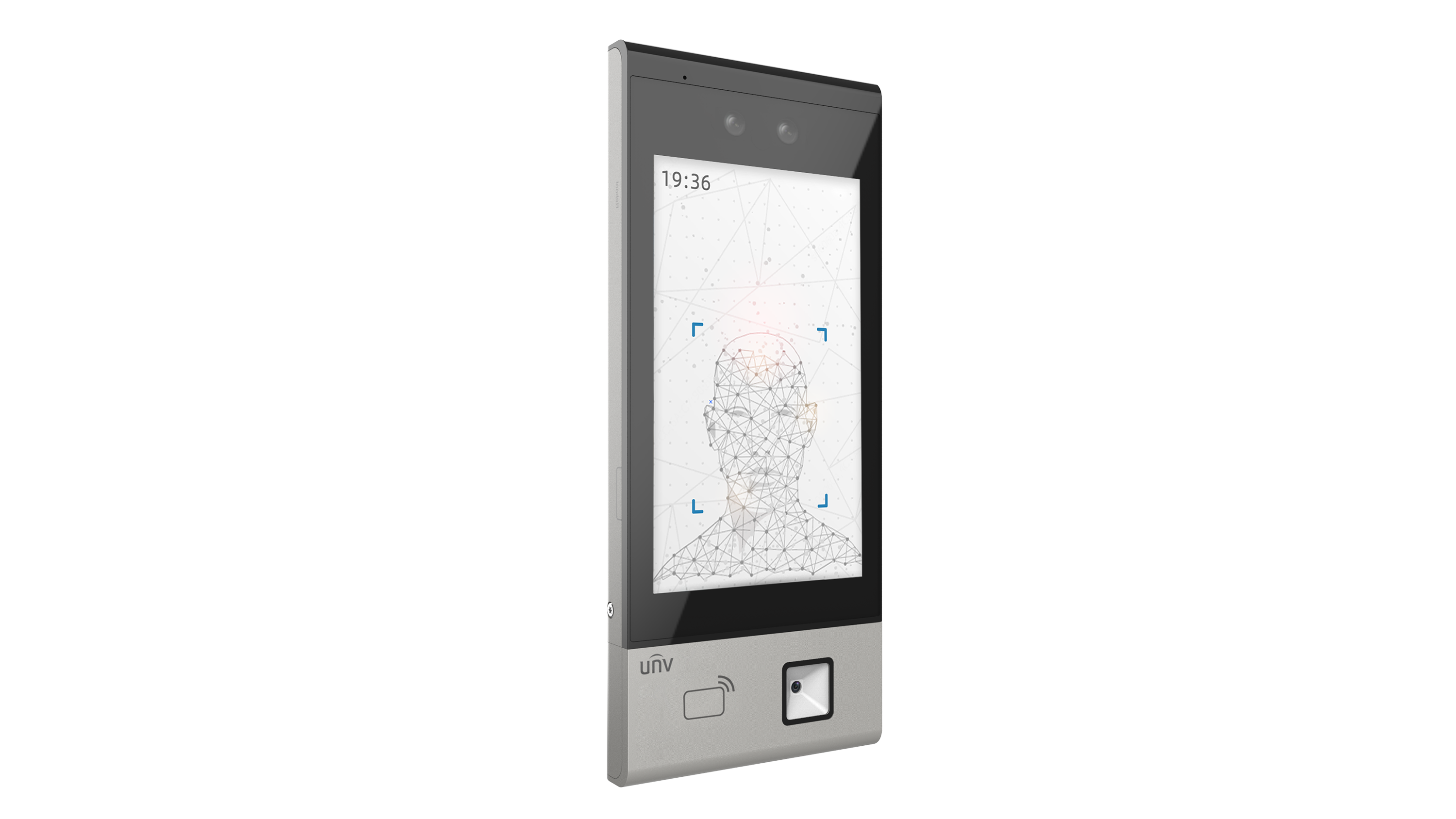

7英寸智能门禁机（触摸屏、二维码、WiFi）
产品描述
OET-573B-HMQR-Z-W-R 7英寸智能终端具有高性能、高可靠性、高准确率、大容量数据库、快速识别和出色的光适应性等特点。该产品完美融合了UNV智能技术，通过基于深度学习算法的智能认证实现精准的门禁控制。该产品可广泛应用于楼宇、园区、企业、办公楼等各种场景。
关键特性
- ● 工业级设计，外观时尚优雅
- ● 嵌入式Linux操作系统，确保运行稳定可靠
- ● 内置二维码模块，功能丰富，高度集成
- ● 采用UNV深度学习算法模型，准确率>99%，误识率<1%，识别速度快（最快0.2秒）
- ● 内置深度学习芯片，支持本地离线识别，智能识别容量：50,000
- ● 2MP WDR摄像头，具备智能测光功能，可在各种复杂光照条件下提供高质量图像
- ● RGB+IR双摄像头活体检测功能，有效防止图像或视频伪造
- ● 支持广告模式，用户可以自定义切换到下一张图片或视频的时间，并查看播放时间统计
- ● 支持刷卡、密码、二维码等多种开门方式
- ● 支持在本地界面和Web界面进行设备管理，例如人员录入、参数配置和系统维护
- ● 支持视频采集，并通过 ONVIF 协议连接 VMS/NVR 设备
- ● 内置 16G eMMC 前端存储，容量达 20 万条录像，稳定可靠
- ● 具备防拆报警、开门超时、定时认证等功能；支持连接火警设备，在接收到火警信号时触发开门
- ● 支持通过室内机或APP实时查看访客，并支持远程开门和视频对讲
- ● 提供多个功能齐全的API，支持在第三方平台上进行人员、记录、配置等管理
技术规格
| Model | OET-573B-HMQR-Z-W-R |
| Hardware Specification | |
| Operation System | Linux |
| Interface | Network port×1, Wiegand input×1, Wiegand output×1, RS485×1, alarm input×2, alarm output×1, door lock interface×1, door sensor interface×1, door button×1 |
| Power Supply | DC 12V±25% input |
| Screen | Touch Screen, Size:7 inch, Resolution: 600×1024 |
| Supplement Light | LED soft light and infrared light |
| Built-in Microphone | Support |
| Built-in Speaker | Support |
| Built-in Card Reader | Built-in IC card reader and QR code reader at the bottom of the device |
| Weight | 550g |
| Dimensions (L x W x H) | 260.2mm × 110mm × 23.5mm |
| Mount Method | Standard metal wall mount, supports bare installation and 86-box installation |
| Protection Level | IP65 (Apply waterproof glue to the gap between the device and the wall. For more information, see the quick guide.) |
| Operating Environment | -20℃~+60℃, Relative Humidly<95% (non-condensing) |
| Application Situation | Indoor/outdoor |
| Authentication Mode | Smart Recognition allowlist∶(1:N); Card:(1:N) |
| Power Consumption | 7.6W |
| Specification Index | |
| Accuracy Rate | >99% |
| Recognition Time | 200ms |
| Smart Recognition Capacity | 50000 |
| Card Capacity | 50000 |
| Storage Capacity | 16GB |
| Event Capacity | 200,000 events (without images); 50,000 events (with images) |
| User Management | Support human being library addition, deletion, update |
| Record Management | Support local recording and real-time upload |
| Basic Business | |
| Door Opening Method | Password, QR code, card |
| Card Support | Mifare 1 card |
| Communication Mode | 100Mbps Ethernet interface, Wi-Fi |
| Compliance | |
| NDAA Compliant | Support |
