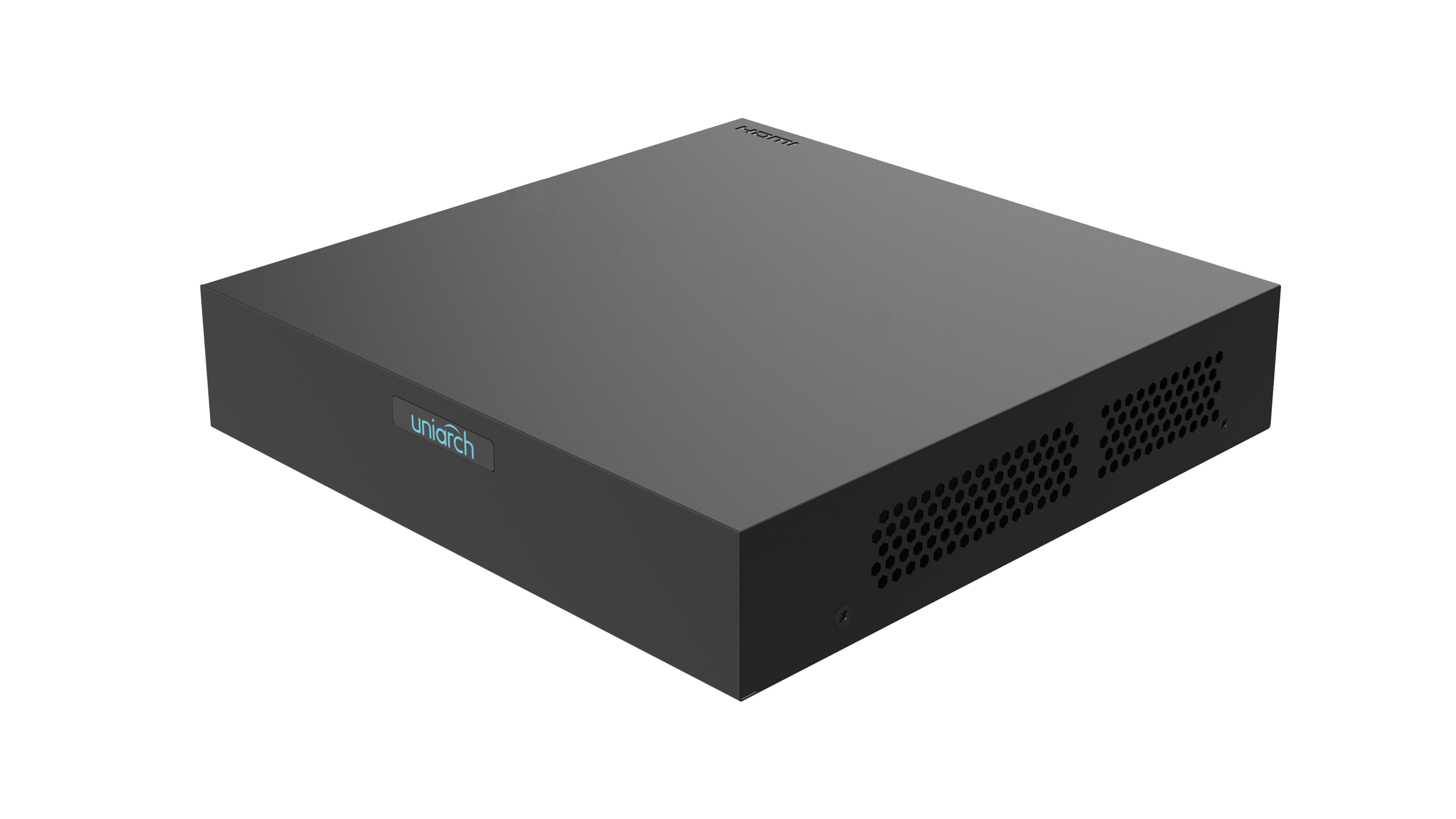

NVR-110S3
产品描述
1个硬盘10通道1U网络视频录像机
关键特性
- ● 支持 Ultra 265/H.265/H.264 视频格式
- ● 6/10/16 路输入
- ● 支持符合 ONVIF 标准的第三方 IP 摄像机：Profile S、Profile G、Profile T
- ● 支持 1 路 HDMI 和 1 路 VGA 输出
- ● 支持 HDMI 和 VGA 同时输出
- ● 最高支持 6MP 分辨率录制
- ● 1 个 SATA 硬盘，最大容量 6TB
- ● 支持云升级
技术规格
| Model | NVR-106S3 | NVR-110S3 | NVR-116S3 |
| Decoding | |||
| Decoding Format | Ultra 265, H.265, H.264 | ||
| Decoding Capability | 2 x 6MP@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 6 x 1080P@30 | 2 x 6MP@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 6 x 1080P@30, 8 x 720P@30, 10 x D1 | 2 x 6MP@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 6 x 1080P@30, 8 x 720P@30, 16 x D1 |
| Decoding Capability Description | The resolution of each channel cannot exceed 4000 pixels in length and 3000 pixels in width | ||
| Audio Compression | G.711A, G.711U | ||
| Network | |||
| Incoming Bandwidth | 64 Mbps | ||
| Outgoing Bandwidth | 48 Mbps | ||
| Remote Users | 128 | ||
| Protocols | TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP, IPv4 | ||
| Browser (Plugin) | IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ | ||
| Video/Audio Input | |||
| IP Video Input | 6-ch | 10-ch | 16-ch |
| Video/Audio Output | |||
| HDMI Output | 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz | ||
| VGA Output | 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz | ||
| 3.5mm Audio Output | 1-ch | ||
| Liveview Display | 1/4/6/8/9 | 1/4/6/8/9/10 | 1/4/6/8/9/16 |
| Corridor Mode Screen | 3/4/5/7 | 3/4/5/7/9/10 | 3/4/5/7/9/10/12/16 |
| Recording | |||
| Recording Resolution | 6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF | ||
| Synchronous Playback in Local | 6-ch | 10-ch | 16-ch |
| Smart | |||
| VCA Detection by IPC | SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD) | ||
| VCA Search | Behavior Search | ||
| Smart by IPC | Total 4-ch(SIP supports channel 1-4, Alarm only, no image) | ||
| GUI Language | |||
| GUI Language | 21 languages: Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian | ||
| Hard Disk | |||
| SATA | 1 SATA Interface | ||
| Capacity | Up to 6 TB for each HDD | ||
| External Interface | |||
| Network Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet Interface | ||
| USB | Rear panel: 2 × USB2.0 | ||
| Power Supply | DC 12 V/2 A | ||
| Working Environment | |||
| Working Temperature | -10 ℃ to 55 ℃ (14 ℉ to 131 ℉) | ||
| Working Humidity | ≤ 90% RH (non-condensing) | ||
| Power Consumption (without HDD) | ≤ 7W | ||
| Dimensions | |||
| Weight (without HDD) | ≤ 1.0Kg (2.20lb) | ||
| Dimensions | 190mm × 195mm × 42mm (7.5"×7.7"×1.6") | ||
| Certification | |||
| Certification | CE; FCC; RoHS; WEEE | ||
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 | ||
| FCC | Part15 Subpart B | ||
