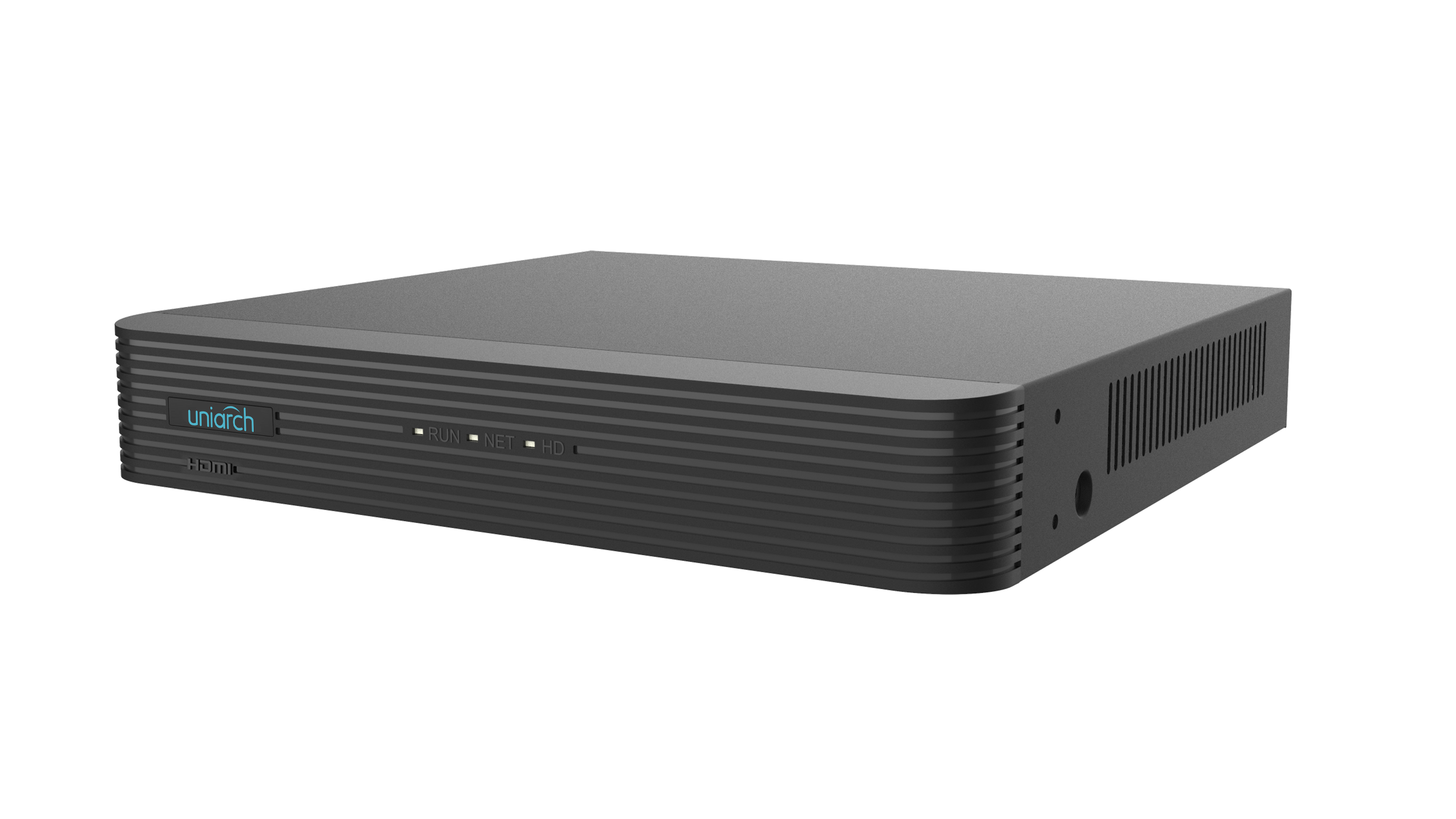

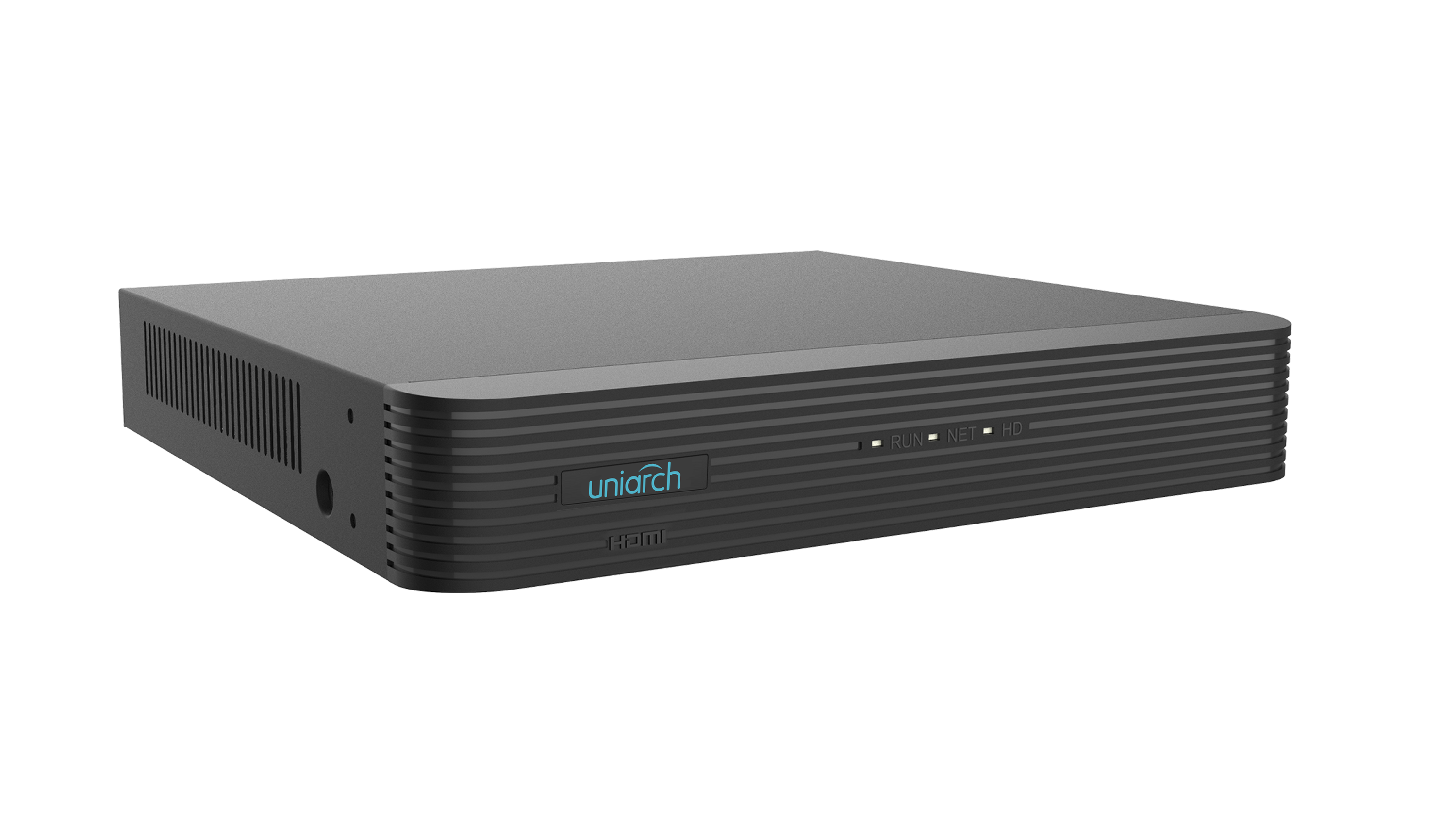

NVR-104E2-P4
产品描述
1个硬盘4通道4PoE 1U网络视频录像机
关键特性
- • 支持 Ultra 265/H.265/H.264 视频格式
- • 4/8 通道输入
- • 即插即用，配备 4/8 个独立的 PoE 网络接口
- • 支持符合 ONVIF 标准的第三方 IP 摄像机：Profile S、Profile G、Profile T
- • 支持 1 路 HDMI 和 1 路 VGA 输出
- • 支持 HDMI 和 VGA 同时输出
- • 最高支持 8MP 分辨率录制
- • 1 个 SATA 硬盘，最大容量 8TB
- • 支持云升级
技术规格
| Model | NVR-104E2-P4 | NVR-108E2-P8 |
| Decoding | ||
| Decoding Format | Ultra 265, H.265, H.264 | |
| Decoding Capability | 1 x 4K@30, 2 x 6MP@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 1080P@30 | 1 x 4K@30, 2 x 6MP@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 6 x 1080P@30, 8 x 720P@30 |
| Decoding Capability Description | The resolution of each channel cannot exceed 4000 pixels in length and 3000 pixels in width | |
| Audio Compression | G.711A, G.711U | |
| Network | ||
| Incoming Bandwidth | 40 Mbps | 50Mbps |
| Outgoing Bandwidth | 40 Mbps | |
| Remote Users | 128 | |
| Protocols | TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP, IPv4 | |
| Browser (Plugin) | IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ | |
| Video/Audio Input | ||
| IP Video Input | 4-ch | 8-ch |
| Video/Audio Output | ||
| HDMI Output | 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz | |
| VGA Output | 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz | |
| RCA Audio Output | 1-ch | |
| Liveview Display | 1/4 | 1/4/6/8/9 |
| Corridor Mode Screen | 3/4 | 3/4/5/7/9 |
| Recording | ||
| Recording Resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF | |
| Synchronous Playback in Local | 4-ch | 8-ch |
| Smart | ||
| VCA Detection by IPC | SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD) | |
| VCA Search | Behavior Search | |
| Smart by IPC | Total 4-ch(SIP supports channel 1-4, Alarm only, no image) | |
| GUI Language | ||
| GUI Language | 21 languages: Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian | |
| Hard Disk | ||
| SATA | 1 SATA Interface | |
| Capacity | Up to 8 TB for each HDD (The maximum HDD capacity varies with environment temperature) | |
| External Interface | ||
| Network Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet Interface | |
| USB | Rear panel: 2 × USB2.0 | |
| Power Supply | DC 48 V/1.35 A | DC 52 V/1.8 A |
| PoE | ||
| PoE Interface | 4 RJ45 10 M/100 M self-adaptive Ethernet Interface | 8 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| Max Power | Max 30 W for single port, Max 54 W in total | Max 30 W for single port, Max 75 W in total |
| Supported Standard | IEEE 802.3at, IEEE 802.3af | |
| Working Environment | ||
| Working Temperature | -10 ℃ to 55 ℃ (14 ℉ to 131 ℉) | |
| Working Humidity | ≤ 90% RH (non-condensing) | |
| Power Consumption (without HDD) | ≤ 9W | |
| Dimensions | ||
| Weight (without HDD) | ≤ 1.2Kg (2.65lb) | |
| Dimensions | 260mm × 243mm × 46mm (10.2"×9.6"×1.8") | |
| Certification | ||
| Certification | CE; FCC; RoHS; WEEE | |
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 | |
| FCC | Part15 Subpart B | |
