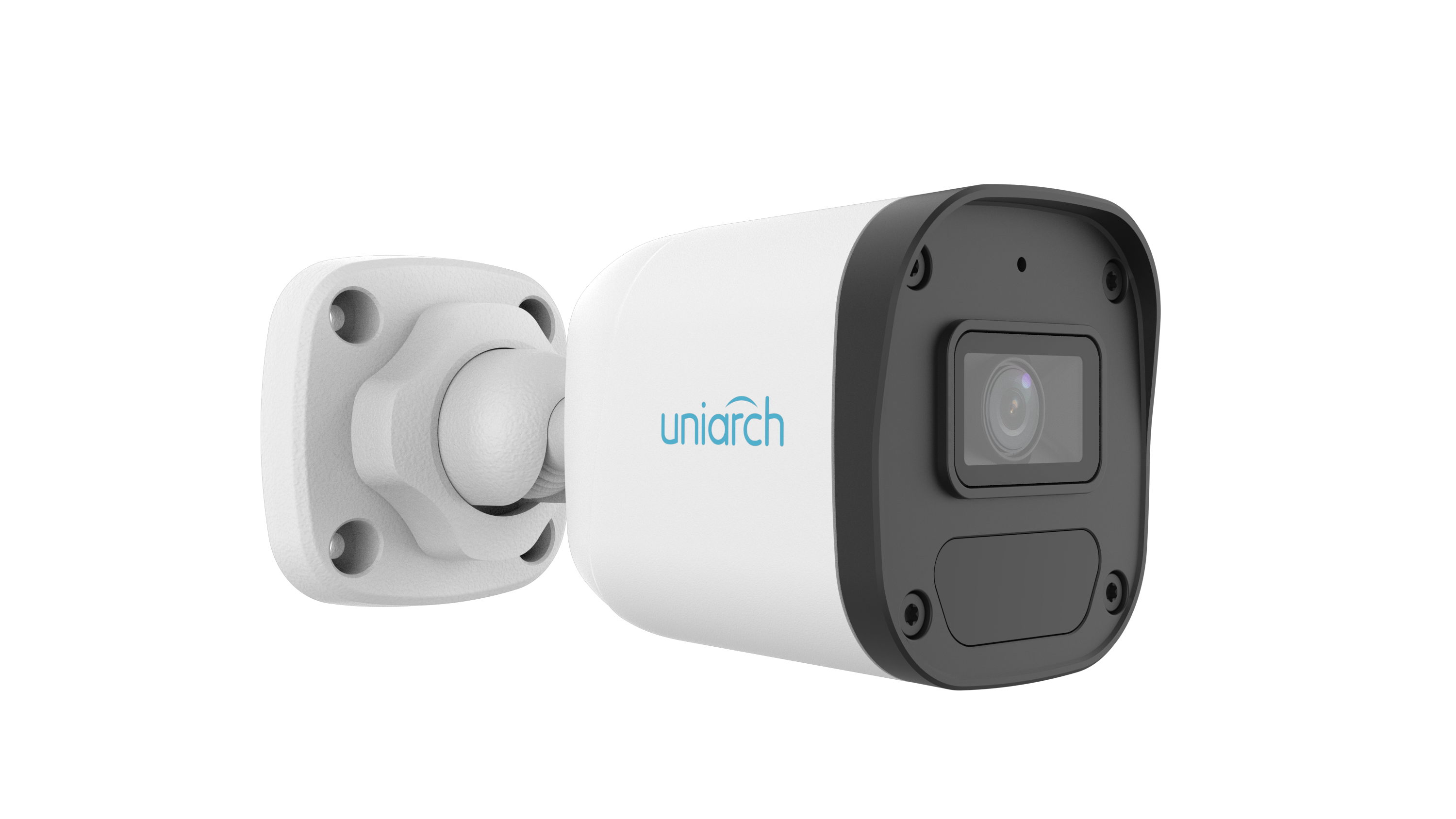

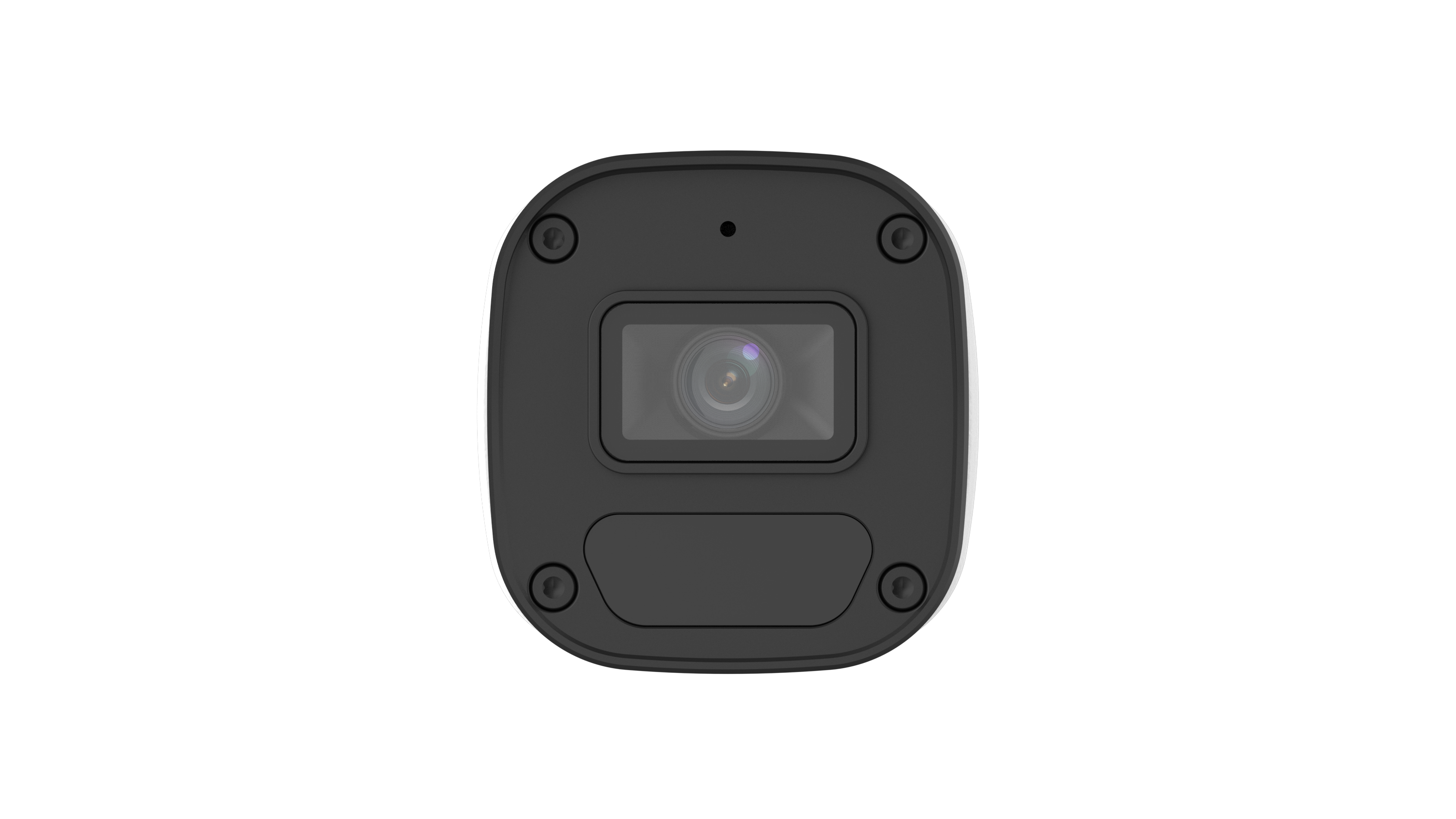

2MP红外子弹型网络摄像机
产品描述
2MP红外子弹型网络摄像机
关键特性
- ● 1080P 高清画质，1/3.0 英寸 CMOS 传感器
- ● 1080P (1920 × 1080)@30 fps；720P (1280 × 720)@30 fps
- ● 支持 Ultra 265、H.265 和 H.264 编码
- ● 2D/3D 数字降噪 (DNR)
- ● ROI（感兴趣区域）功能，即使在低带宽环境下也能确保感兴趣区域的图像质量
- ● 智能红外，红外照射距离可达 30 米（98.4 英尺）
- ● 三轴防抖
- ● 内置麦克风
- ● 宽工作温度范围：-30 ℃ 至 60 ℃（-22 ℉ 至 140 ℉）
- ● 支持 PoE 供电 (IEEE 802.3af)
- ● IP67 防护等级
技术规格
| Model | IPC-B132-AF28-ECO | IPC-B132-AF40-ECO |
| Camera | ||
| Max Resolution | 2 MP | |
| Sensor | 1/3.0" CMOS | |
| Min. Illumination | Color: 0.01 Lux (F2.0, AGC ON), 0 Lux with IR on | |
| Day/Night | IR-cut filter with auto switch (ICR) | |
| Shutter | Auto/Manual, 1 to 1/100000 s | |
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° | |
| S/N | > 52 dB | |
| WDR | DWDR | |
| Lens | ||
| Focal Length | 2.8 mm | 4.0 mm |
| Iris | F2.0 | |
| Field of View (H) | 87.8° | 68.4° |
| Field of View (V) | 48.9° | 37.0° |
| Field of View (D) | 99.0° | 77.3° |
| DORI | ||
| DORI Distance (Lens) | 2.8 mm | 4 mm |
| DORI Distance (Detect) | 51.4 m (168.7 ft.) | 73.5 m (241.0 ft.) |
| DORI Distance (Observe) | 20.6 m (67.5 ft.) | 29.4 m (96.4 ft.) |
| DORI Distance (Recognize) | 10.3 m (33.8 ft.) | 14.7 m (48.2 ft.) |
| DORI Distance (Identify) | 5.1 m (16.9 ft.) | 7.3 m (24.0 ft.) |
| Illuminator | ||
| Supplemental Light | IR | |
| Illumination Distance (IR) | 30 m (98.4 ft.) | |
| Wavelength | 850 nm | |
| IR On/Off Control | Auto/Manual | |
| Video | ||
| Video Compression | Ultra 265, H.265, H.264 | |
| H.264 Code Profile | Baseline profile, Main profile, High profile | |
| Frame Rate | Main Stream: 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; Sub Stream: 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps; |
|
| Video Bit Rate | 128 Kbps to 6144 Kbps | |
| U-code | Support | |
| OSD | Up to 4 OSDs | |
| Privacy Mask | Up to 4 areas | |
| ROI | Up to 8 areas | |
| Video Stream | Dual streams | |
| Image | ||
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 | |
| Digital Noise Reduction | 2D/3D DNR | |
| Smart IR | Support | |
| Flip | Normal, Flip vertical, Flip horizontal, 180° | |
| Dewarping | N/A | |
| HLC | Support | |
| BLC | Support | |
| Defog | Digital defog | |
| Events | ||
| Basic Detection | Motion detection, Audio detection, Human body detection 2.0 | |
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication | |
| Audio | ||
| Audio Compression | G.711U, G.711A | |
| Audio Bitrate | 64 Kbps | |
| Two-way Audio | N/A | |
| Suppression | Support | |
| Sampling Rate | 8 kHz | |
| Network | ||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, DNS, DDNS, NTP, UPnP, HTTP, QoS, RTCP, RTMP | |
| Compatible Integration | ONVIF (Profile S, Profile T) , API, SDK | |
| User/Host | Up to 32 users. 2 user levels: administrator and common user | |
| Client | APP, Uniarch client | |
| Web Browser | Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ | |
| Interface | ||
| Audio I/O | N/A | |
| Alarm I/O | N/A | |
| Built-in Mic | Support | |
| Built-in Speaker | N/A | |
| WIFI | N/A | |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | |
| Video Output | N/A | |
| Certification | ||
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B) |
|
| Safety | CE LVD (EN 62368-1) | |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); | |
| Protection | IP67 (IEC 60529) | |
| General | ||
| Power | PoE (IEEE 802.3af) | |
| Power Consumption | Max. 2.5 W | |
| Power Interface | N/A | |
| Dimensions | 140 mm × 61 mm × 65 mm (5.5" × 2.4" × 2.6") (L × W × H) | |
| Weight | 0.15 kg (0.34 lb.) | |
| Material | Plastic | |
| Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | |
| Storage Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | |
| Surge Protection | 4 KV | |
| Reset Button | N/A | |
| Web Client Language | 1 Language: English | |
