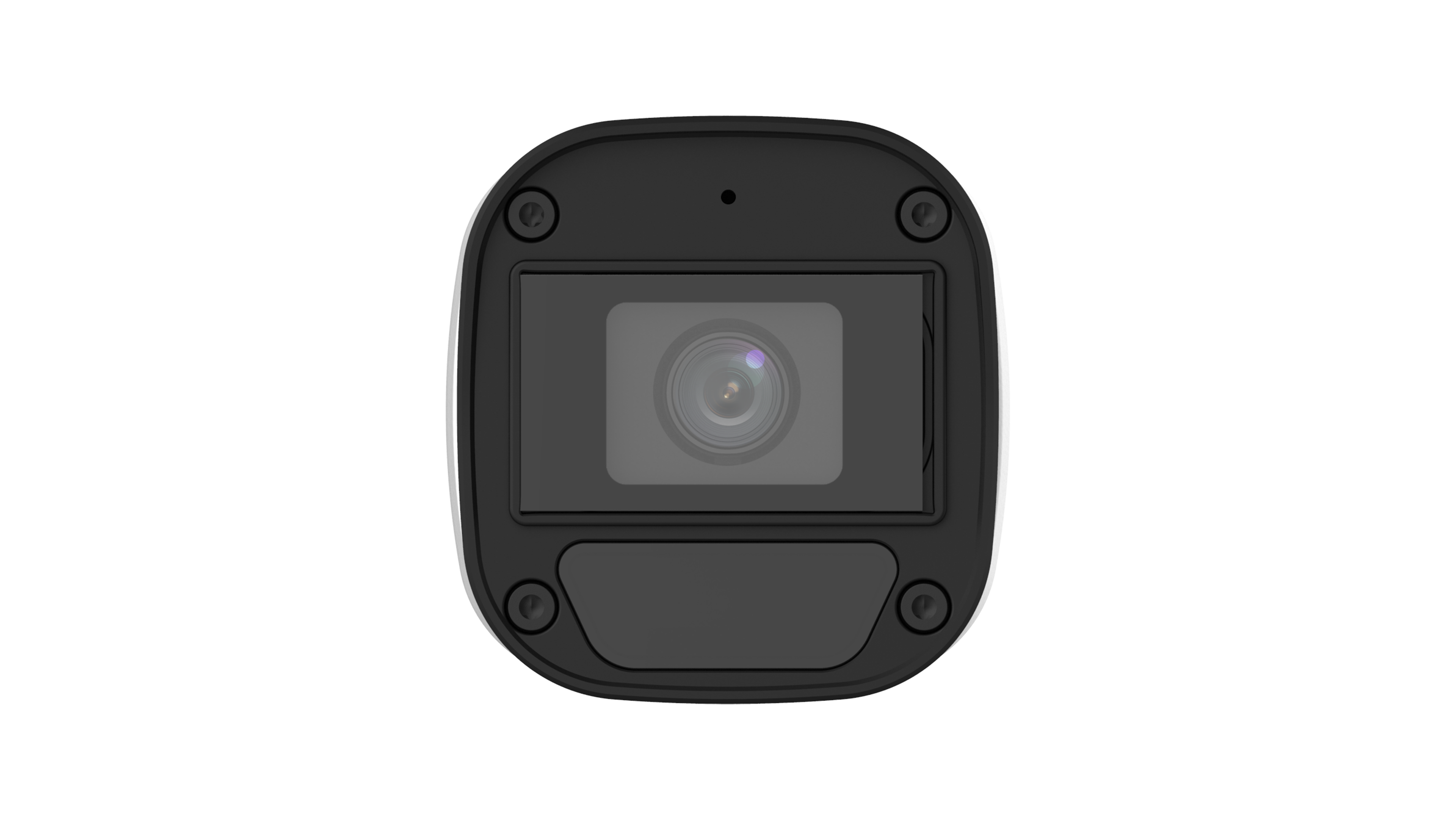

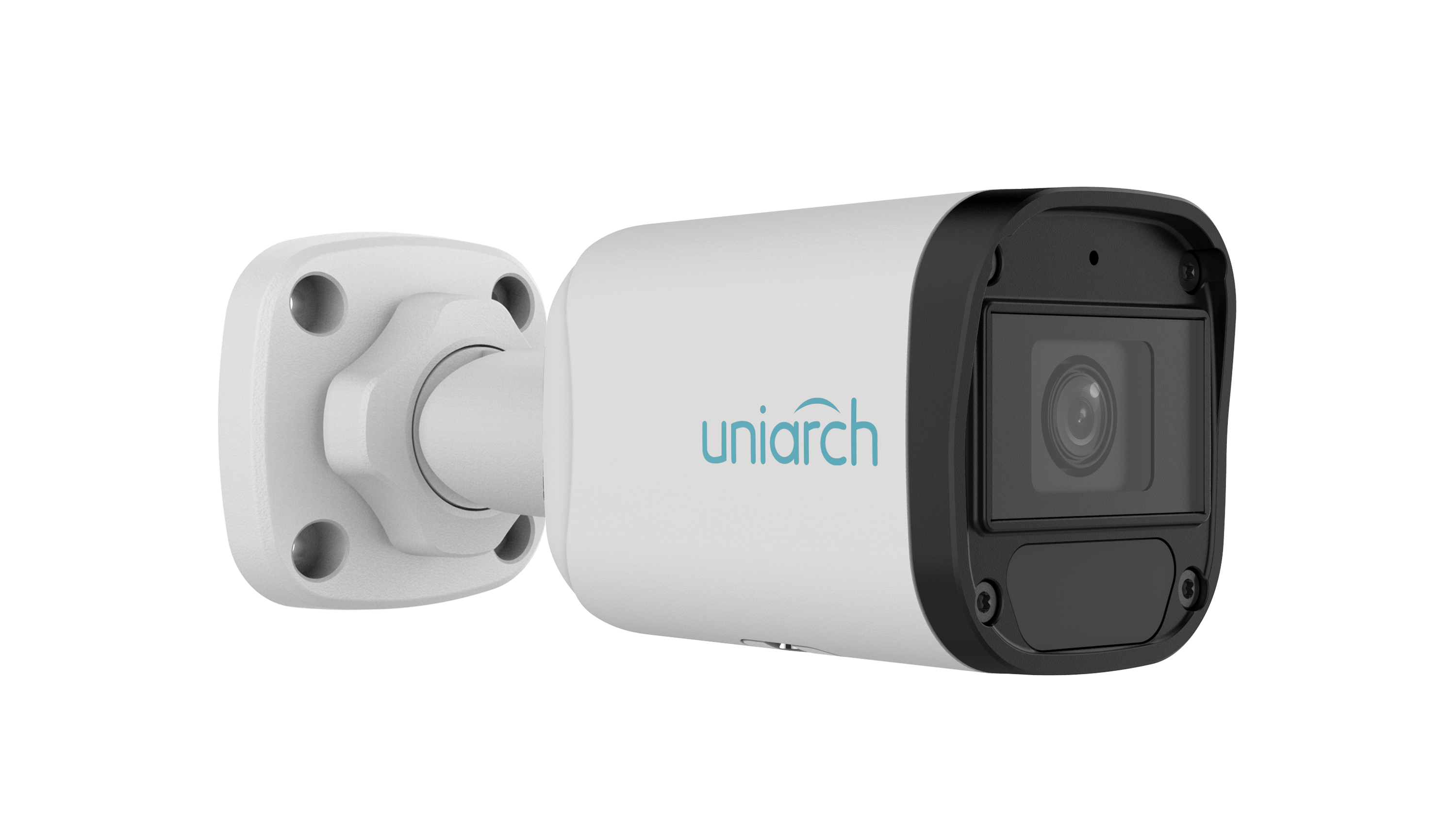

200 万像素固定红外线球型网络摄像机
产品描述
200 万像素固定红外线球型网络摄像机
关键特性
- ● 1080P 高清画质，1/2.9 英寸 CMOS 传感器
- ● 1080P (1920 × 1080)@25/20 fps；720P (1280 × 720)@25/20 fps
- ● 支持 Ultra 265、H.265 和 H.264 编码
- ● 2D/3D 数字降噪 (DNR)
- ● ROI（感兴趣区域）功能，即使在低带宽环境下也能确保感兴趣区域的图像质量
- ● 智能红外，红外距离可达 30 米（98.4 英尺）
- ● 支持 MicroSD 卡，最大容量 128 GB
- ● 三轴防抖
- ● 内置麦克风
- ● 宽工作温度范围：-30 ℃ 至 60 ℃（-22 ℉ 至 140 ℉）
- ● 直流 12 V，支持 PoE (IEEE 802.3af) 供电
- ● IP67 防护等级
技术规格
| Model | IPC-B122-APF28K | IPC-B122-APF40K |
| Camera | ||
| Max Resolution | 2 MP | |
| Sensor | 1/2.9" CMOS | |
| Min. Illumination | Color: 0.02 Lux (F2.1, AGC ON), 0 Lux with IR on | |
| Day/Night | IR-cut filter with auto switch (ICR) | |
| Shutter | Auto/Manual, 1 ~ 1/100000s | |
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° | |
| S/N | >52 dB | |
| WDR | DWDR | |
| Lens | ||
| Focal Length | 2.8 mm | 4.0 mm |
| Iris | F2.1 | |
| Iris Type | Fixed | |
| Field of View (H) | 101.1° | 83.7° |
| Field of View (V) | 55.0° | 44.6° |
| Field of View (D) | 111.0° | 89.1° |
| DORI | ||
| DORI Distance (Lens) | 2.8 mm | 4 mm |
| DORI Distance (Detect) | 45.0 m (147.6 ft.) | 64.3 m (211.0 ft.) |
| DORI Distance (Observe) | 18.0 m (59.1 ft.) | 25.7 m (84.3 ft.) |
| DORI Distance (Recognize) | 9.0 m (29.5 ft.) | 12.9 m (42.3 ft.) |
| DORI Distance (Identify) | 4.5 m (14.8 ft.) | 6.4 m (21.0 ft.) |
| Illuminator | ||
| Supplemental Light | IR | |
| Illumination Distance (IR) | Up to 30m (98ft) | |
| Wavelength | 850 nm | |
| IR On/Off Control | Auto/Manual | |
| Video | ||
| Video Compression | Ultra 265, H.265, H.264 | |
| H.264 Code Profile | Baseline profile, Main profile, High profile | |
| Frame Rate | Main Stream: 1080P (1920 × 1080), max. 25 fps; 720P (1280 × 720), max. 25 fps; Sub Stream: D1 (720 × 576), max. 25 fps; 640 × 360, max. 25 fps; 2CIF (704 × 288), max. 25 fps; CIF (352 × 288), max. 25 fps; |
|
| Video Bit Rate | 128 Kbps to 6144 Kbps | |
| U-code | Support | |
| OSD | Up to 4 OSDs | |
| Privacy Mask | Up to 4 areas | |
| ROI | Up to 8 areas | |
| Video Stream | Dual streams | |
| Image | ||
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 | |
| Digital Noise Reduction | 2D/3D DNR | |
| Smart IR | Support | |
| Flip | Normal, Flip vertical, Flip horizontal, 180° | |
| Dewarping | N/A | |
| HLC | Support | |
| BLC | Support | |
| Defog | Digital defog | |
| Events | ||
| Basic Detection | Motion detection, Audio detection | |
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication | |
| Storage | ||
| Edge Storage | MicroSD, up to 512 GB | |
| Network Storage | ANR | |
| Audio | ||
| Audio Compression | G.711U, G.711A | |
| Audio Bitrate | 64 Kbps | |
| Two-way Audio | N/A | |
| Suppression | Support | |
| Sampling Rate | 8 kHz | |
| Network | ||
| Protocols | IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, QoS | |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | |
| User/Host | Up to 32 users, 2 user levels: administrator and common user | |
| Client | APP, Uniarch client | |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ | |
| Interface | ||
| Audio I/O | N/A | |
| Alarm I/O | N/A | |
| Built-in Mic | Support | |
| Built-in Speaker | N/A | |
| WIFI | N/A | |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | |
| Video Output | N/A | |
| Certification | ||
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B) |
|
| Safety | CE LVD (EN 62368-1) CB (IEC 62368-1) |
|
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); | |
| Protection | IP67 (IEC 60529) | |
| General | ||
| Power | DC 12 V±25%, PoE (IEEE 802.3af) Power consumption: Max. 3.2 W |
|
| Power Interface | Ø5.5 mm coaxial power plug | |
| Dimensions | 160 mm × 62 mm × 65 mm (6.3" × 2.4" × 2.6") (L × W × H) | |
| Weight | 0.21 kg (0.46 lb.) | |
| Material | Graphene + Plastic | |
| Storage Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | |
| Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | |
| Surge Protection | 4 KV | |
| Reset Button | N/A | |
